- Translate the human-readable source code into a machine-executable program
- Creating the application binaries for a software release
Java Build process Tools
What is maven?
Maven is a tool that can now be used for building and managing any Java-based project.
Maven provides tools to:
- Facilitate and uniformize the build process
- Provide quality project documentation
- Manage project dependencies efficiently
Convention over configuration
A manual build process, or even a build process created with the ANT tool, is extensive, repetitive, and not very exciting.
With Maven, developers do not have to mention each and every configuration detail; Maven provides the default behaviour for projects.
Maven defines a standard directory structure so that every developer will be immediately familiar with every Maven project.
main/java - Application/Library sources
main/resources - Application/Library resources
test/java - Test sources
test/resources - Test resources
target - Build output
Project Object Model
POM is an XML file, and it's a fundamental unit of work in Maven, because it contains various informations and configuration details about the project.
Some configurations details include:
- project organisation/group (groupID)
- project name (artifactId)
- project version
- source code locations
Extensible Markup Language (XML) is a markup language (i.e., a language that uses tags) that defines a set rules for encoding documents in a format that is readable by both machines and human beings.
XML was designed to store and transport data.
<?xml version="1.0" encoding="UTF-8"?> <note> <to>Karl</to> <from>Laura</from> <heading>Reminder</heading> <body>Don't forget our meeting this weekend!</body> </note>
Project Object Model
<?xml version="1.0" encoding="UTF-8"?> <project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd"> <modelVersion>4.0.0</modelVersion> <groupId>academy.mindswap</groupId> <artifactId>my-first-maven-project</artifactId> <version>1.0.0</version> </project>
Every information that isn't explicitly specified by the developer, is inherited by from the Super POM.

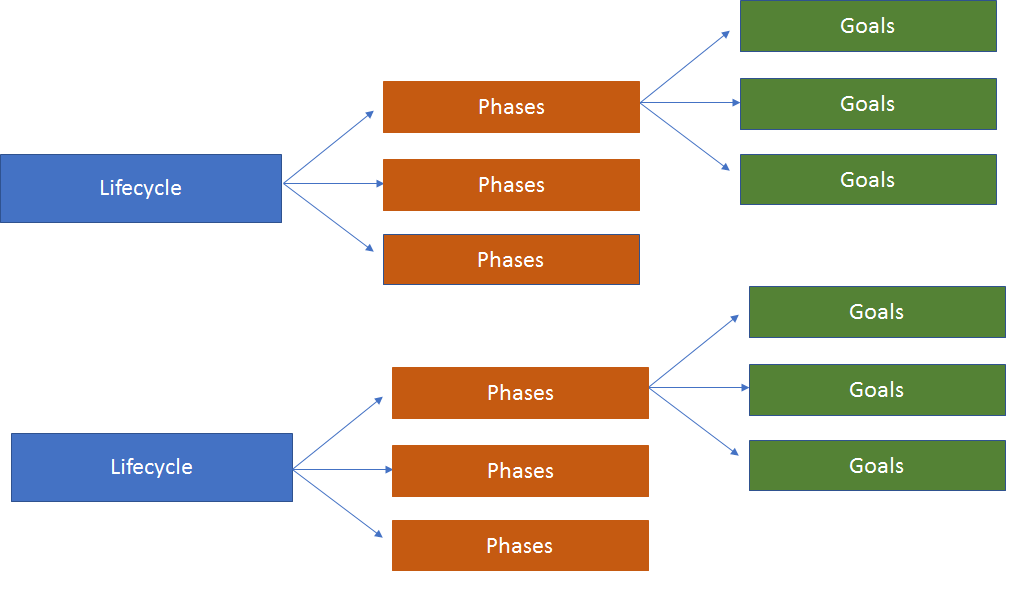

A well-defined sequence of phases, which define the order in which the goals are to be executed.
A goal is a specific task which contributes to the building and managing of a project; it may be bound to zero or more build phases.

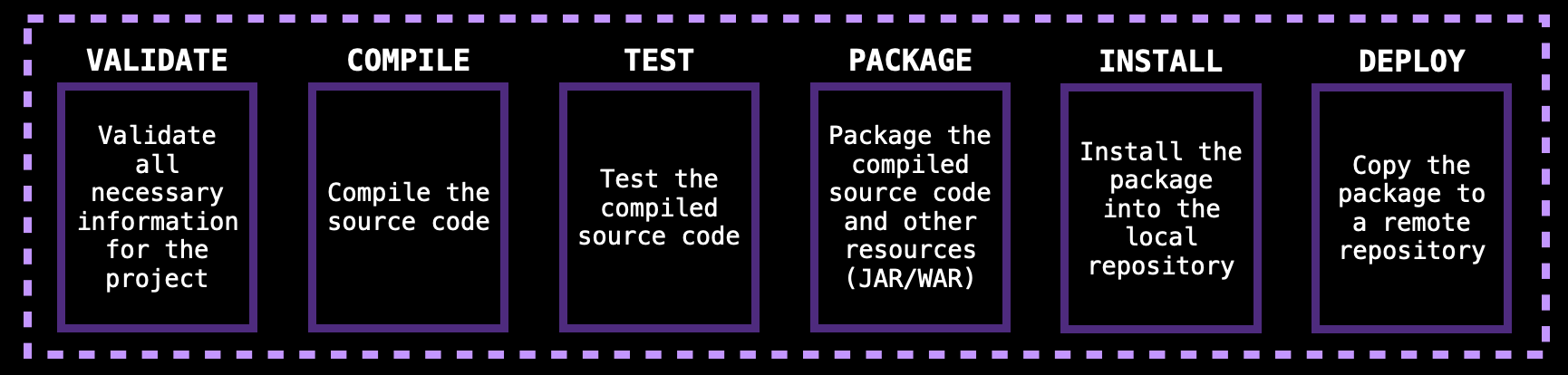

standard BUILd lifecycle phases
We can add goals to phases by configuring the plugins in our project.
// Execute all phases up to package $ mvn package
Tasks on Maven are executed by plugins. A plugin generally provides a set of goals.
Maven plugins are generally used to:
- create a jar file
- create a war file
- compiling code files
- unit testing the code
// Executing a Maven goal mvn [plugin-name]:[goal-name]
<plugin> <groupId>org.apache.maven.plugins</groupId> <artifactId>maven-compiler-plugin</artifactId> <version>3.8.1</version> <configuration> <source>15</source> <target>15</target> </configuration> </plugin>
// Executing the compile goal mvn compiler:compile
In the POM file, we can also specify what external libraries the project depends on, and Maven will download them.
<!--EXAMPLE DEPENDENCY--> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot</artifactId> <version>2.4.4</version> </dependency>
But how can Maven know all of this?
Plugins and dependencies are loaded from remote repositories when needed.
Downloaded software is saved in a local repository for use by all maven projects.
By Soraia Veríssimo
