in the real world of real time:

Data Channels


Hadar Weiss
CTO and Co-Founder, Peer5
Hacker @Sharefest
                           // twt:whadar // hadar@peer5.com



Again, why is this so

huge




The web meant to be

Decentralized




In reality we are quite centralized due to the fact:

web browsers can only communicate with servers

(HTTP, WebSockets)



WebRTC should make the web fully distributed





cool,  do you haz teh codez?

(actually it's not that simple)

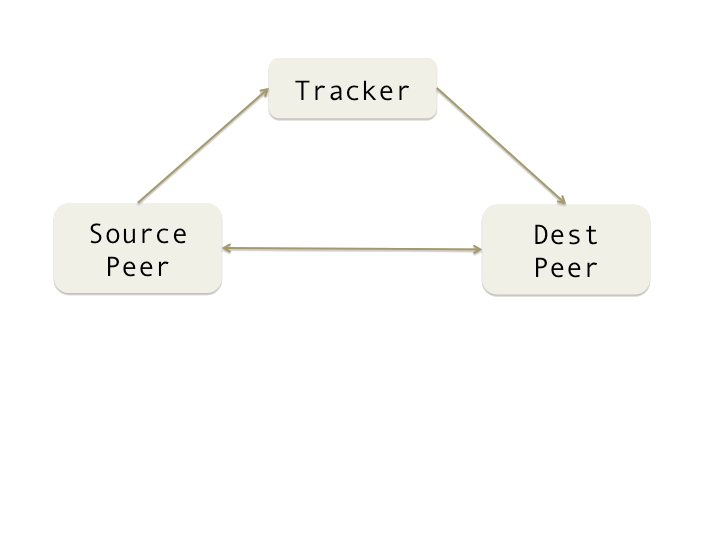

Tasks:

  • Security
  • Signalling
  • NAT traversal
  • Decide on reliable vs unreliable
  • P2P encapsulation and serialization
  • Browser support and interoperability
  • WebRTC hacks
  • P2P coordination
  • HTTP augmentation

Reliable or Unreliable

(or partially reliable)



SCTP!

(Stream Control Transmission Protocol)

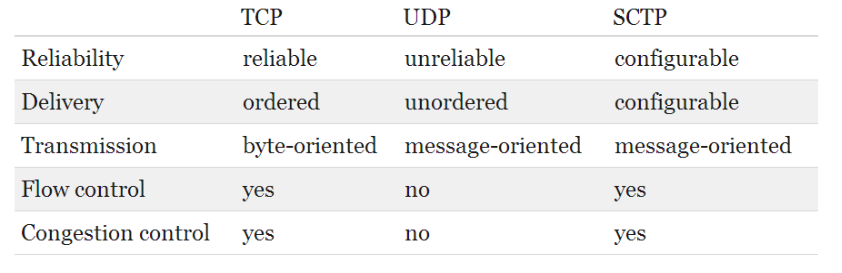

TCP vs UDP vs SCTP


High Performance Browser Networking  - by Ilya Grigorik

SCTP Sample


var channel_confs = {
    TCPLIKE_CHANNEL:{}, //reliable, ordered
	UNORDERED_RELIABLE:{ ordered: false },
	ORDERED_PARTIAL_3ATTEMPS: { ordered: true,  maxRetransmits: 3},
	UNORDERED_PARTIAL_3ATTEMPS: { ordered: false, maxRetransmits: 3},
	ORDERED_PARTIAL_1S: { ordered: true,  maxRetransmitTime: 1000},
	UNORDERED_PARTIAL_1S: { ordered: false, maxRetransmitTime: 1000},
	UNORDERED_UNRELIABLE: { ordered: false, maxRetransmits: 0 }
}


var pc = new RTCPeerConnection(servers
) // don't do {RtpDataChannels:true}
var dc = pc.createDataChannel("dc_label", channel_confs.UNORDERED_PARTIAL_3ATTEMPS);

Underlying Protocols

High Performance Browser Networking  -  by Ilya Grigorik



P2P Multicasting


Why?

Video
Streaming
Radio




File Sharing





VOD
live
gaming

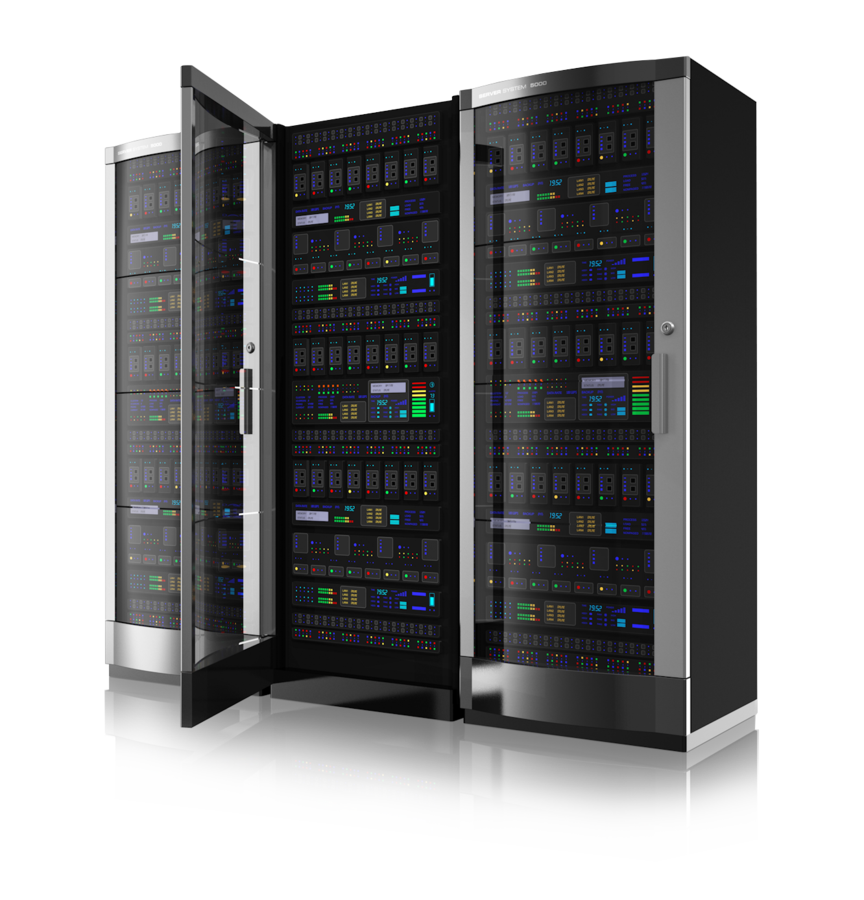

Why not just servers

How

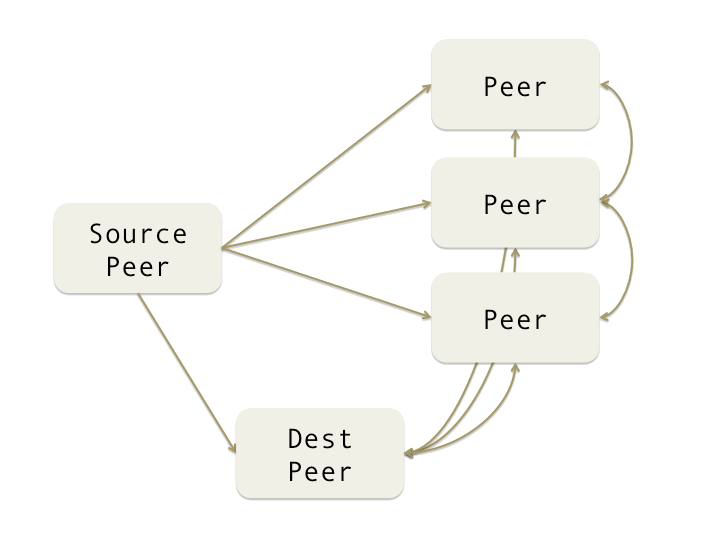

Gigantic Mesh!


Matching Algorithm

  1. Available Chunks
  2. Location
  3. ISP
  4. Local Network
  5. Available Bandwidth
  6. Available CPU
  7. # of connected peers
  8. Expected peer lifetime
  9. WebRTC specific
    1. Browser vendor
    2. Browser version
  10. Many other factors you can consider such as network congestion, mobile data plan, share ratio, etc.

    More P2P logic

    What peers are there in the swarm?

    What peers can I connect to?

    What parts (chunks) of the resource each peer has?

    Which peers are available to send me data?

    Do I really get the chunks that I asked for?

    Am I getting chunks in the best speed?

    Coordination is needed #1

    metadata encapsulation
    /**
         *
         * @param swarmId
         * @param seeder true if seeder
         * @param complete true if availabilityMap, false if update
         * @param blockIds in list of chunks, or availabilityMap
         * @constructor
         */
        function Have(swarmId, seeder, availabilityMap, blockIds) {
            this.tag = exports.P2P_HAVE;
            this.swarmId = swarmId;
            this.seeder = seeder;
            this.blockIds = [];
            if (!seeder) {
                if (availabilityMap) {
                    this.complete = true
                    this.availabilityMap = availabilityMap;
                }
                else {
                    this.complete = false
                    this.blockIds = blockIds;
                }
            }
        } //    swarmId (4bytes)
    //    chunkIds - optional - array of ids each 4bytes
    //    Example of 2 chunks encoding: 0x010203040A0B0C0D. 0x01-0x04 are the first encoded chunk, 0x0A-0x0D are the second encoded chunk)
        function Request(swarmId, chunkIds) {
            this.tag = exports.P2P_REQUEST
            this.swarmId = swarmId;
            if (!chunkIds) chunkIds = [];
            this.chunkIds = chunkIds;
        }

       //    attributes (ordered)
    //    swarmId - 4bytes - only the intial 4 bytes will be encoded
    //    length: chunk size + swarmId length under 1200 bytes constraint
    //    constraints:
    //        peer will send only hash varified chunks
        function Data(swarmId, chunkId, payload) {
            this.tag = exports.P2P_DATA;
            this.swarmId = swarmId;
            this.chunkId = chunkId;
            this.payload = payload;
        }

    Coordination is needed #2

    (serialization)
         var p2p_have_encode = function (message) {
            var buffers = [];
            var swarmId = ascii2ab(BinaryProtocol.packSwarmId(message.swarmId));
            buffers.push(swarmId);
            var seeder = BoolToUInt8Array(message.seeder);
            buffers.push(seeder);
            var complete = BoolToUInt8Array(message.complete);
            buffers.push(complete);
            if (message.complete) {
                buffers.push(message.availabilityMap);
            } else {
                var blockIdsEncoded = UInt32ToUInt8Array(message.blockIds);
                buffers.push(blockIdsEncoded);
            }

            return BinaryProtocol.concat(buffers);
        };

        var p2p_have_decode = function (buffer, index, length) {
            var blockIds;
            var availabilityMap;
            var swarmId = ab2ascii(buffer.slice(index, index + BinaryProtocol.transferedSwarmIdSize));
            index += BinaryProtocol.transferedSwarmIdSize;
            length -= BinaryProtocol.transferedSwarmIdSize;

            var seeder = UInt8ArrayToBool(buffer, index);
            index++;
            length--;

            if (!seeder) {
                var complete = UInt8ArrayToBool(buffer, index);
                index++;
                length--;
                if (complete) {
                    availabilityMap = buffer.slice(index, index + length);
                } else { //update
                    blockIds = [];
                    while (length > 0) {
                        blockIds.push(UInt8ArrayToInt32(buffer, index));
                        index += 4;
                        length -= 4;
                    }
                }
            }
            return new protocol.Have(swarmId, seeder, availabilityMap, blockIds);
        };

    WebRTC Multicasting
    is even harder

    • All in javascript (for good and bad)

    • High churn
      • Users enter and leave rapidly
      • Node.js helps

    • Browser compatibility, interop issues
      • Some users have unsupported browsers - IE, Safari, Opera
      • Some browsers don't like other browsers - Chrome, Firefox

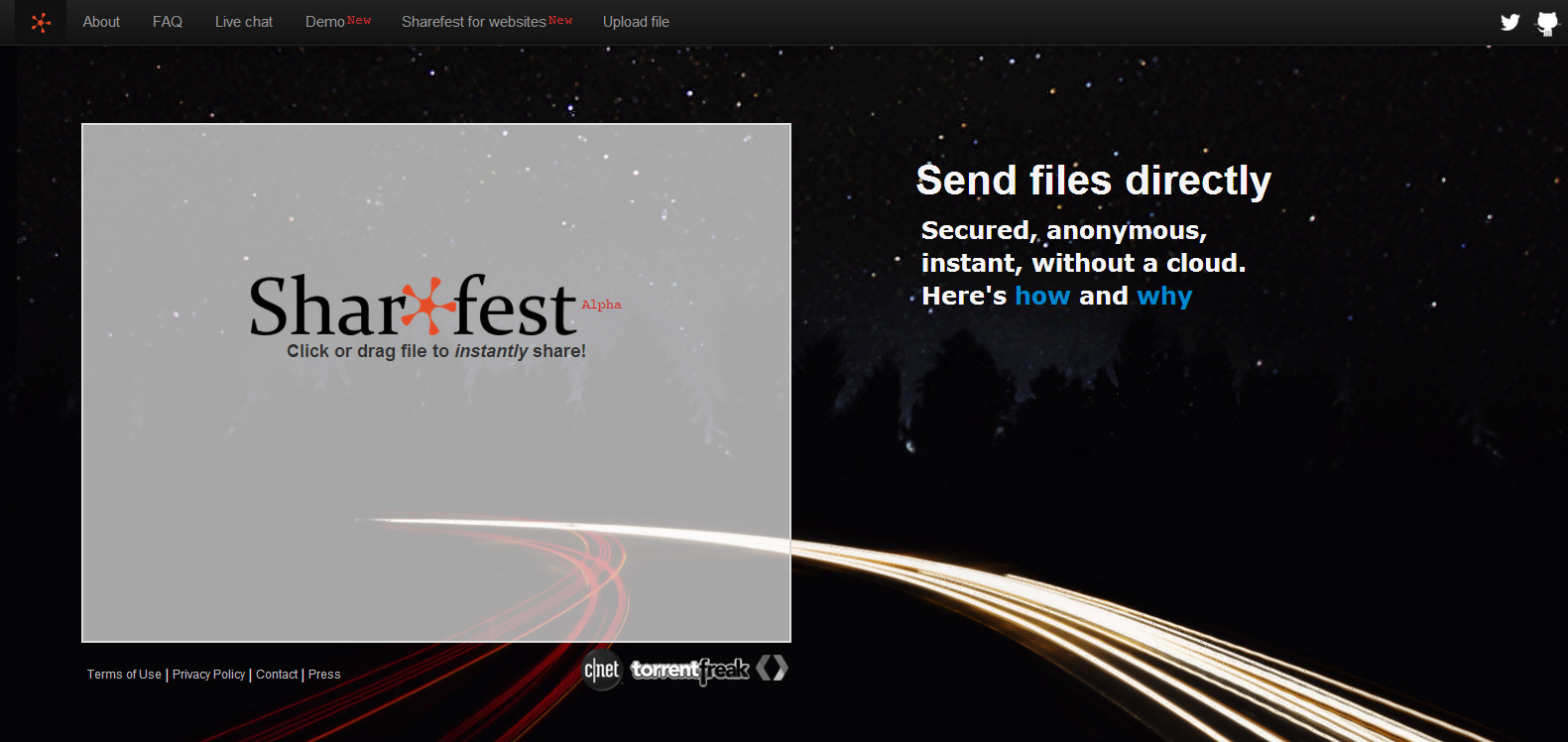

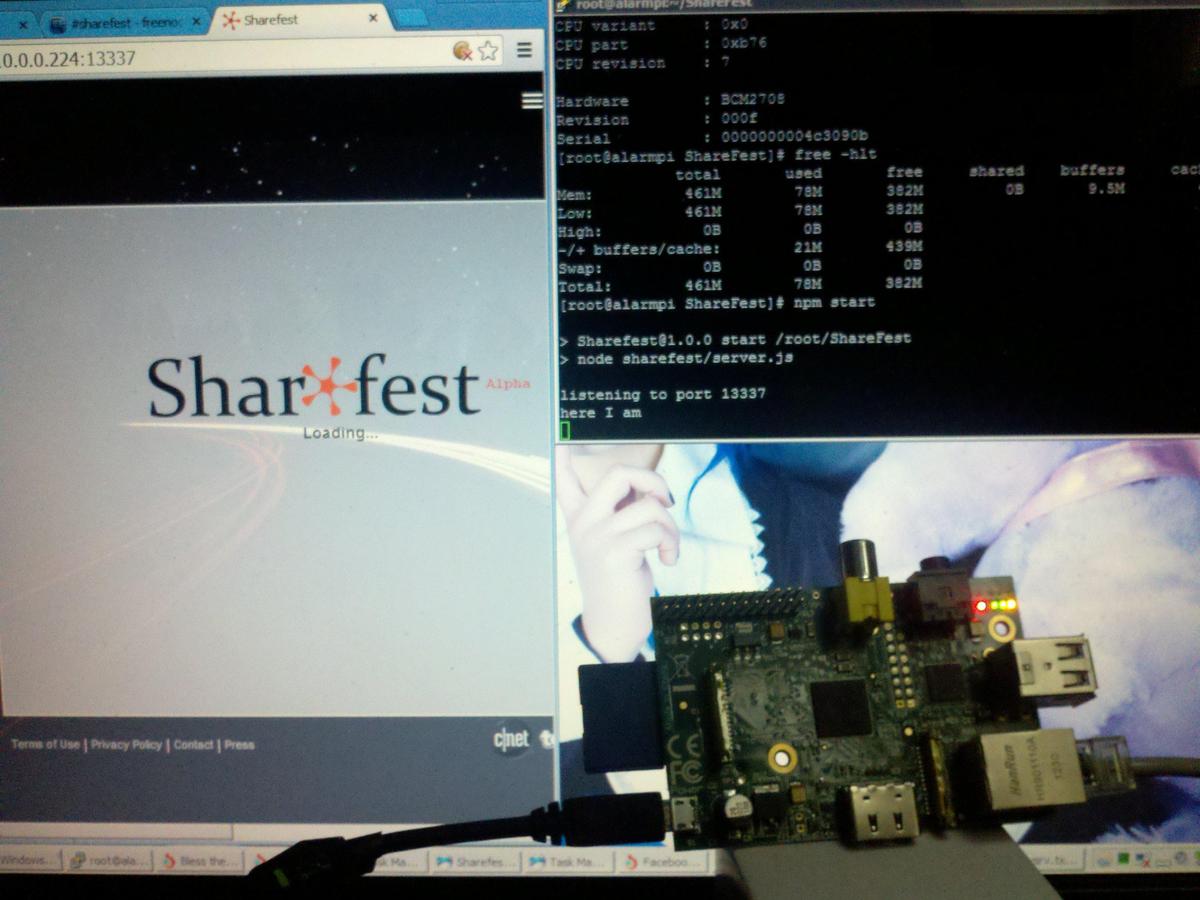

    Sharefest

    • Easiest file sharing
    • Open source
      (join the growing community on github
      )
    • Anyone can create a "torrent"
    • Uses many HTML5 apis
        1. File API
        2. Filesystem API
        3. IndexDB
        4. WebSockets
        5. And... WebRTC DataChannels

    Sharefest Architecture



    Sharefest Architecture

    (mesh network)

    Sharefest Lessons Learned

    1. Unreliable is usable
    2. Chrome memory management is problematic
    3. Latency of handshake is long!
    4. WebRTC has quirks
      1. SDP hacks
      2. Over capacity connections throw errors
      3. Many others were resolved
    5. 256 connections per user is the hard limit - but your chrome will probably crash sooner
    6. File size is a limit, but FS API can help if there's some free space at the endpoint
    7. Binary serialization of chunks and metadata over base64 is heavy

      Sharefest numbers

      1. 91% of the connections are STUN
      2. Median p2p connection yield 90KB/s
      3. Local networks usually yield 2MB/s
      4. Units
        1. Chunk Size = 800bytes
        2. Block Size = 1MB

          chrome://webrtc-internals/ is useful

      Last Conclusion from Sharefest:

      Node.js is your friend

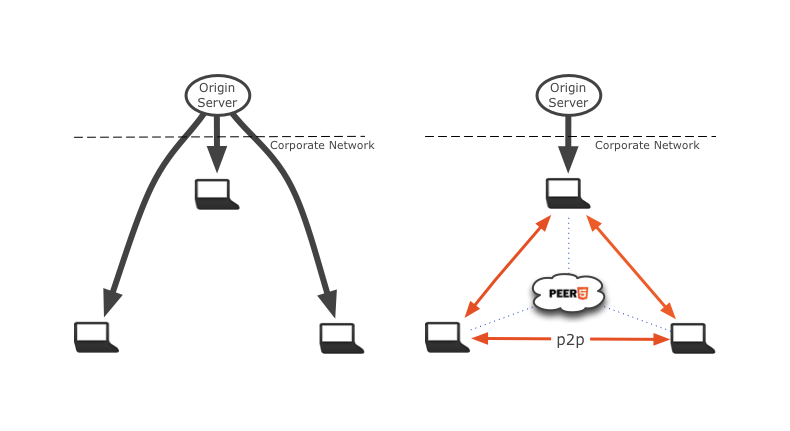

      Peer-assisted

      (or HTTP-assisted if you are real p2p fan)

      Hybrid Approaches

      1. Aggressive -- Use P2P and HTTP all the time.
        Good for file downloading
      2. Server-friendly --  Use P2P as much as possible.
        Good for video streaming. Requires client side logic
      3. P2P friendly -- Use servers as much as possible
        when there's a capacity problem, use P2P.
        Good for websites that want to use P2P as an "insurance"















      https://github.com/Peer5/P2PXHR

      Peer5 XHR-like API

      • Data channels is hard:
        • learn a new javascript api
        • create a signaling protocol
        • STUN/TURN
      • Big messages
      • Really big messages
      • Multi-party p2p
      • P2PXHR - Empower your xhr's

      The API

       peer5.Request =  function(peer5_options){
          peer5.Request.prototype = {
              /* -- Attributes -- */
              this.readyState;
              this.response;
              this.status;
               /* -- Methods -- */
              open: function(method, id) {},
              send: function() {},
              abort: function(options) {},
               /* -- EVENTS --
              onreadystatechange: function(e) {},
              onloadstart: function(e) {},
              onprogress: function(e) {},
              onerror:function(e) {},
              onload:function(e) {},
          }
      }

      Peer5 XHR-like API

      An API compatible with W3C XMLHttpRequest (AJAX):
      var xhr = new XMLHttpRequest(); // (taken from html5rocks.com)
      xhr.open('GET', '/path/to/image.png', true);
      xhr.responseType = 'blob';

      xhr.onload = function(e) {
        if (this.status == 200) {
          // Note: .response instead of .responseText
          var blob = new Blob([this.response], {type: 'image/png'});
          ...
        }
      };
      xhr.send();
       With the power of the peers to assist seamlessly (see on peer5.com)
      //ctor takes optional parameters to control hybrid downloading
      var request = new peer5.Request();
      request.open('GET', 'http://path/to/a/big/file.json');
      request.onload = function(e){
      console.log(this.response);
      ... }; request.send();

      File download example

      var request = new peer5.Request();
      request.open("GET",url);
      request.onprogress = function(e){
      	console.log(e.loadedHTTP);
      	console.log(e.loadedP2P);
      	$("#amount-http").text(e.loadedHTTP);
      	$("#amount-p2p").text(e.loadedP2P);
      	$("#progress").attr("value",((e.loadedHTTP+e.loadedP2P)/e.total)*100);
      };
      request.onload = function(e){
      	$("#progress").hide();
      	var saveB = document.getElementById("saveBtn");
      	saveB.hidden=false;
      	saveB.onclick = function(){save(e.currentTarget.response);};
      };
      request.onerror = function(e){
      	console.log(e.error);
      }
      request.send();

      Img download example


      var request = new peer5.Request();
      request.open("GET",url);

      request.onprogress = function(e){
      	console.log(e.loadedHTTP);
      	console.log(e.loadedP2P);
      };

      request.onload = function(e){
      	console.log(e.currentTarget.response);
      	$("#cat").attr("src",e.currentTarget.response);
      };

      request.onerror = function(e){
      	console.log(e.error);
      }

      request.send();

      Sharefest over api

      downloader
      peer5Request = new peer5.Request({downloadMode:"p2p"});
      peer5Request.onload = function(e){
      	console.log("Finished downloading the file");
      	finishProgressUI(e.loaded, e.total);
      }
      peer5Request.onloadstart = function(e){
      	initiateProgressUI();
      }
      peer5Request.onprogress = function(e){
      	if(this.readyState == 1) return;
      	updateProgressUI(e.loaded,e.total);
      }
      peer5Request.onreadystatechange = function(e){
      	if(this.readyState == 1){
      		document.getElementById('box-text').textContent = "Initiating...";
      	}else if(this.readyState == 2){
      		document.getElementById('box-text').textContent = "";
      	}
      }
      peer5Request.onswarmstatechange = function(e){
      	if(e.numOfPeers){
      		$('#numOfPeers').html('Connected to ' + e.numOfPeers + ' peers');
      		$('#numOfPeers').show();
      	}
      }
      peer5Request.onerror = function(e){
      	switch (this.status) {
      		case peer5.Request.SWARMID_NOT_FOUND_ERR:
      			roomNotFoundUI();
      			break;
      		case peer5.Request.CHROME_ONLY_SWARM_ERR:
      			chromeOnlyRoomUI();
      			break;
      		case peer5.Request.FIREFOX_ONLY_SWARM_ERR:
      			firefoxOnlyRoomUI();
      			break;
      		case peer5.Request.FILE_SIZE_ERR:
      			fileSizeTooBigUI();
      			break;
      	}
      }
      peer5Request.open("GET",document.location.pathname.substring(1));
      peer5Request.send();

      Sharefest over api

      Uploader
       var peer5Request = new peer5.Request({downloadMode:"p2p"});
      var file = files[0];
      peer5Request.onprogress = function(e){
      	updateShareProgressUI(e.loaded, e.total);
      }
      peer5Request.onload = function(e){
      	userState = {isSeeder:true,origin:true};
      	var url = this.getFileInfo().swarmId;
      	history.pushState({}, url, url);
      	ga('send', 'pageview'); // should notify the current URL
      	updateList(file.name);
      	$('#box-text').append(' is ready to be shared!' + '<br>');
      	showLink();
      	updateShareButtons();
      }
      peer5Request.open('POST');
      peer5Request.onerror = function(e){
      	switch (this.status) {
      		case peer5.Request.FILE_SIZE_ERR:
      			fileSizeTooBigUI();
      			break;
      	}
      }
      peer5Request.send(file);

      Codelab


      • Encrypted send
      • Clipboard share
      • above/below the fold loading
      • and more


      Thank you

      hadar@peer5.com // sharefest.me




      Data channels

      By Hadar Weiss
